Graco LineDriver Conditional Registration Kit
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The Conditional Registration Kit is an electrical and signalling package designed and fabricated in-house by GO Industrial. It complies with the conditional registration requirements of every Australian state and territory road authority: TMR (QLD), Transport for NSW, VicRoads, DIT (SA), DoT (WA), Department of State Growth (TAS), MVR (NT) and Access Canberra (ACT).
The kit is suitable with all Graco LineDriver models - include the LineDriver Standard, LineDriver HD, LineDriver HD E-Start, and LineDriver ES. Once fitted, the same machine is compliant for conditional road registration in your state.
Features
- Compliant with conditional registration requirements in all eight Australian states and territories
- Designed and fabricated in-house at GO Industrial's Brisbane workshop
- SAE Class 1, ECE-R65 approved LED rotating amber beacon, 120 flashes per minute, 50,000-hour LED life
- 2,350 lumen LED front work light, IP67 / IP6K9K, 9-32V multivolt
- Two ADR-approved LED combination lamps for front direction signalling, fully sealed and epoxy-encapsulated
- ADR-approved LED licence plate light, multivolt 12-24V
- 110 dB(A) at 1 metre dual-tone disc horn (420 Hz / 335 Hz) for audible warning
- 12V system throughout, low current draw and long service life
- Pre-terminated wiring loom with sealed automotive connectors, ready to fit
- Heavy-duty battery disconnect plug for safe isolation between shifts
- Operator switch panel with labelled controls and identification decals
- Three-piece fabricated mounting bracket set, powder-coated mild steel, sized for the LineDriver chassis and the LineLazer it carries

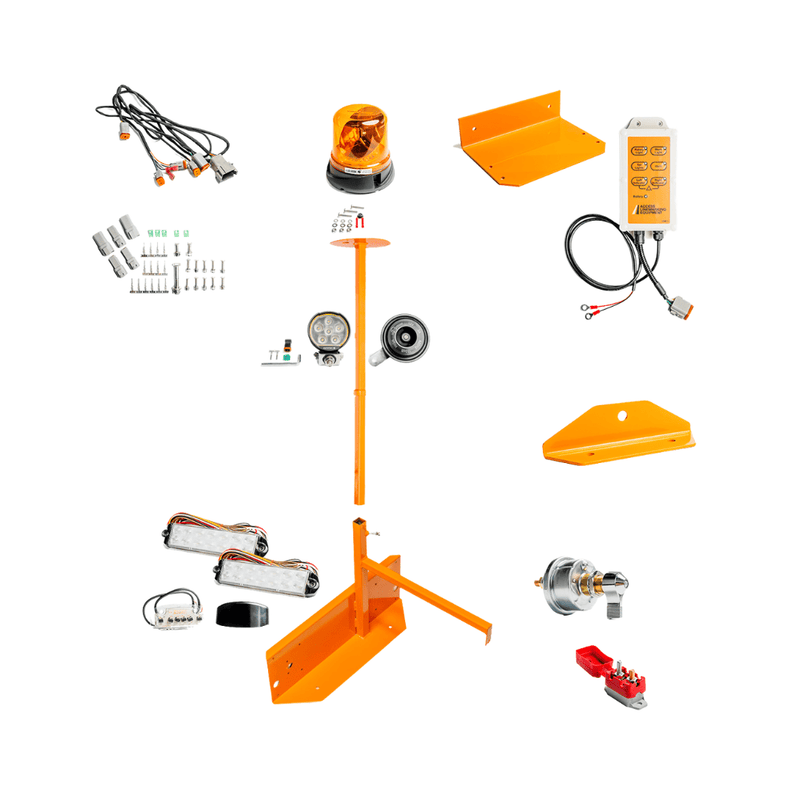

Included accessories
Specifications
| Operating voltage | 12V DC system |
| Rotating beacon | LED, SAE Class 1, ECE-R65 approved, 12-24V multivolt |
| Beacon current draw | 1.9A at 12V |
| Beacon flash rate | 120 flashes per minute |
| Beacon lens | UV hard-coated polycarbonate, amber |
| Beacon LED life | 50,000 hours |
| Front work / flood light | LED, 2,350 lumens, 9-32V multivolt |
| Work light current draw | 1.2A at 13.8V |
| Work light ingress protection | IP67 / IP6K9K |
| Work light mount | Single-bolt M10 |
| Indicator lamps | 2 x LED slimline combination, 12-24V multivolt, ADR approved |
| Indicator function | Stop, tail, indicator and reverse in one housing |
| Indicator construction | Polycarbonate, fully sealed, epoxy-encapsulated electronics |
| Licence plate light | LED, 12-24V multivolt, ADR approved, white |
| Licence plate mounting | Vertical or horizontal |
| Audible warning | Disc horn, 110 dB(A) at 1 metre, 420 Hz / 335 Hz dual-tone |
| Horn voltage | 12V |
| Harness | Pre-terminated wiring loom, sealed automotive connectors |
| Battery isolation | Heavy-duty disconnect plug |
| Bracketry | Fabricated mild steel, powder coated, three-bracket set |
| Compatibility | Graco LineDriver HD (262005, 25U474), Graco LineDriver ES (25U671) |
Warranty
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

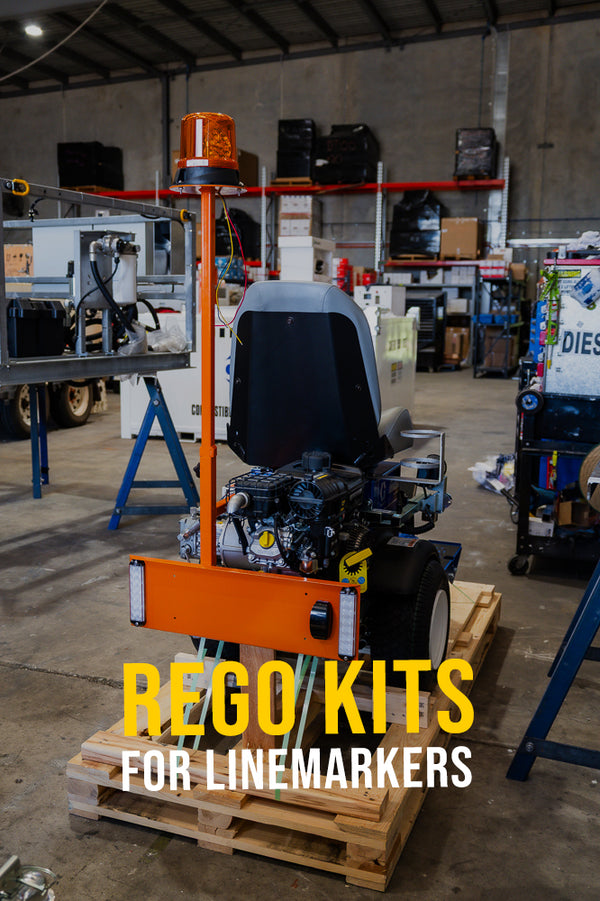

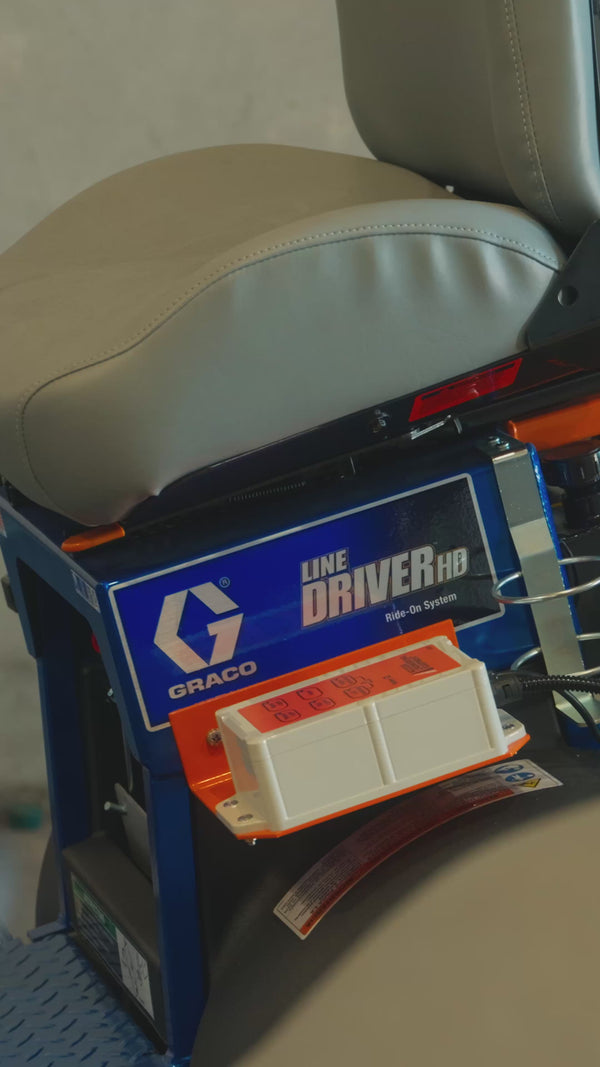

Field videos & walkthroughs.
Common questions.
Will this kit pass conditional registration inspection in all Australian states?
Do I need to re-fit the kit if I move the LineDriver between states?
Which LineDriver models does the kit fit?
Can GO Industrial fit the kit for me?
What is conditional registration?
Is the kit covered by warranty?
