The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a Fine Finish Flat Tip Guard.

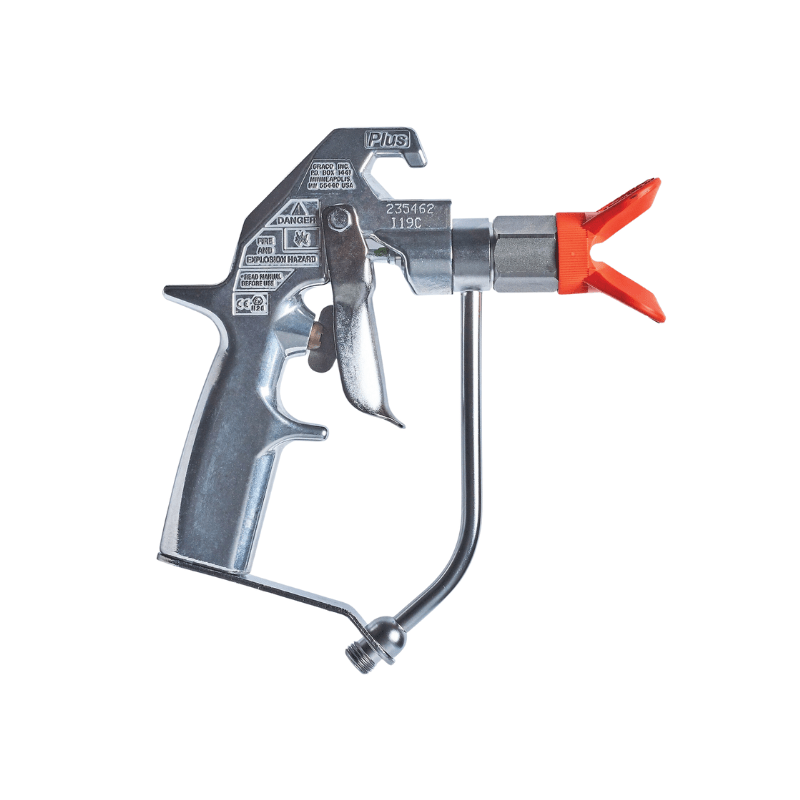

GRACO Silver Plus Fine Finish Flat Tip 2 Finger Airless Spray Gun
SKU 235462
$970.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Features
Features
- Rugged Design
- Durable forged aluminum withstands harsh work environments
- Lighter weight than competitive guns Polished body is easy to clean
- Exclusive Needle Design
- Factory set needle needs no trigger adjustments
- Guaranteed for life against breakage
- Maximum performance and long life
- Stainless Steel Fluid Tube
- Fluid flows directly to the tip through the gun fluid tube
- Provides the ability to spray heavier materials
- Including high solid coatings and mastics
- Optional Light Viscosity Needle Kit
- Provides faster shut-off to reduce spitting of light viscosity material
- Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)
Specifications
| AIR INLET SIZE (CM) | 0.635 |
|---|---|
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET SIZE (MM) | 6.35 |
| AIR INLET THREAD GENDER | Male |
| AIR INLET THREAD TYPE | NPSM |
| BODY MATERIAL | Aluminum |
| COMPONENT A INLET SIZE (CM) | 0.635 |
| COMPONENT A INLET SIZE (IN) | 1/4 |
| COMPONENT A INLET SIZE (MM) | 6.35 |
| COMPONENT A INLET THREAD TYPE | NPSM |
| COMPONENT TYPE | Single Component |
| FLUID ORIFICE SIZE (CM) | 0.094 |
| FLUID ORIFICE SIZE (IN) | 0.037 |
| FLUID ORIFICE SIZE (MM) | 0.94 |
| FOR USE WITH | High Pressure Application |
| GUN ACTIVATION | Manual |
| GUN TYPE | Airless Gun |
| INCLUDES | Fine Finish Flat Tip Guard |
| MAXIMUM FLUID PRESSURE (BAR) | 345 |
| MAXIMUM FLUID PRESSURE (KPA) | 34500 |
| MAXIMUM FLUID PRESSURE (PSI) | 5000 |
| MAXIMUM FLUID TEMPERATURE (°C) | 50 |
| MAXIMUM FLUID TEMPERATURE (°F) | 120 |
| MODEL | Silver Plus |
| PURGE METHOD | Liquid |
| TRIGGER LOCK | Locking |
| TRIGGER TYPE | Two-Finger |
| TYPE | Spray Gun |
| SOUND POWER LEVEL (DB(A)) | 87 |
| SOUND PRESSURE LEVEL (DB(A)) | 78 |
| MAXIMUM FLUID PRESSURE (MPA) | 34.5 |
