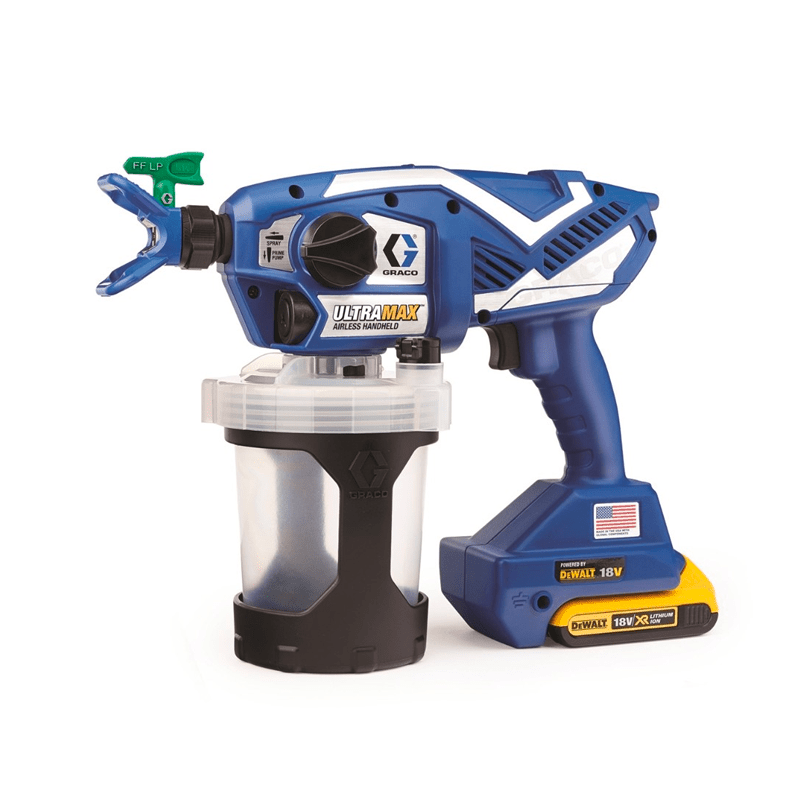

GRACO UltraMAX Cordless Handheld Airless Sprayer
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.
Tested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. Static shock protection eliminates the potential for sparks while SmartControl technology delivers a flawless finish with no thinning required. Industry-tested Graco Ultra handhelds are the most advanced in the world, delivering unbeatable speed, flawless finish, and next-use reliability.
Features
-
Triax II Triple Piston Pump: The new, high performance pump is designed using durable stainless steel and carbide components bonded with a high strength polymer and provides incredible durability in a light weight build
-
Flammable Material Compatibility: Unit includes plastic fittings to significantly reduce the risk of spark from static electricity and thus making it suitable for pumping flammable materials such as cleaning solvents. This makes the unit suitable for oil based paints.
-
Reliable Startup: No inlet check valve to get stuck and an automatic outlet ball knocker to prevent blockages
-
Perfect Airless Finish: Smooth and even finish at any hand speed with no thinning required. Provides single coat coverage of paints on any given surface
-
Powered by DEWALT XR Lithium Ion System: 3-LED fuel gauge system allows immediate feedback on state of charge all in a lightweight design. 30% faster charge time (35 minutes) than other competitors.
-
ProConnect: On-The-Job Pump Replacement System which only requires one tool to swap out a pump.
-
SmartControl: Spray at any hand speed with professional finish every time due to precision pressure control delivering a consistent spray fan without pressure fluctuations
-
ProControl II: Adjust motor speed to spray at virtually any speed that the job demands
-
RAC X FF LP Tips: Provides superior finish at low pressure and comes in a wide variety of sizes to match any application 32 oz
-
FlexLiner Paint Bags: Reusable liners eliminate cleanup time, allowing you to simply disconnect the paint supply from the unit
Included accessories
Specifications
| Ultra Corded | Ultra Cordless | Ultra Max Cordless | |
| Hot Solvent Compatible | No | No | Yes |
| Pressure Control | Yes | Yes | Yes |
| Pressure Range | 500 - 2000 psi | 500 - 2000 psi | 500 - 2000 psi |
| Tip Type Supported | RAC X FF LP | RAC X FF LP | RAC X FF LP |
| Tip Size Supported | .008 - .016 in | .008 - .016 in | .008 - .016 in |
| Tip(s) Included | RAC X FF LP 514 | RAC X FF LP 514 | RAC X FF LP 514 & RAC X FF LP 210 |
| FlexLiner Bags Included | 4 | 4 | 6 |
| Power Source | Corded | Battery | Battery |
| Batteries Included | N/A | 2 - DEWALT 18V Max Compact 2.0 ah XR Lithium Ion | 2 - DEWALT 18V Max Compact 2.0 ah XR Lithium Ion |
| Filter Mesh Included | 60 Mesh | 60 Mesh | 60 & 100 Mesh |
| Fully Repairable | Yes | Yes | Yes |
| ProConnect System | Yes | Yes | Yes |
| Storage Bag Included | Yes | Yes | Yes |
| Weight | 2.1 kg | 2.4 kg | 2.4 kg |
| Height | 267mm | 267mm | 267mm |
| Width | 127mm | 127mm | 127mm |
| Length | 361mm | 361mm | 361mm |
Warranty
Additional Information
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Field videos & walkthroughs.
More videos
Tap a thumbnail to switch the main player.
-
Video 1 -
Video 2 -
Video 3
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
