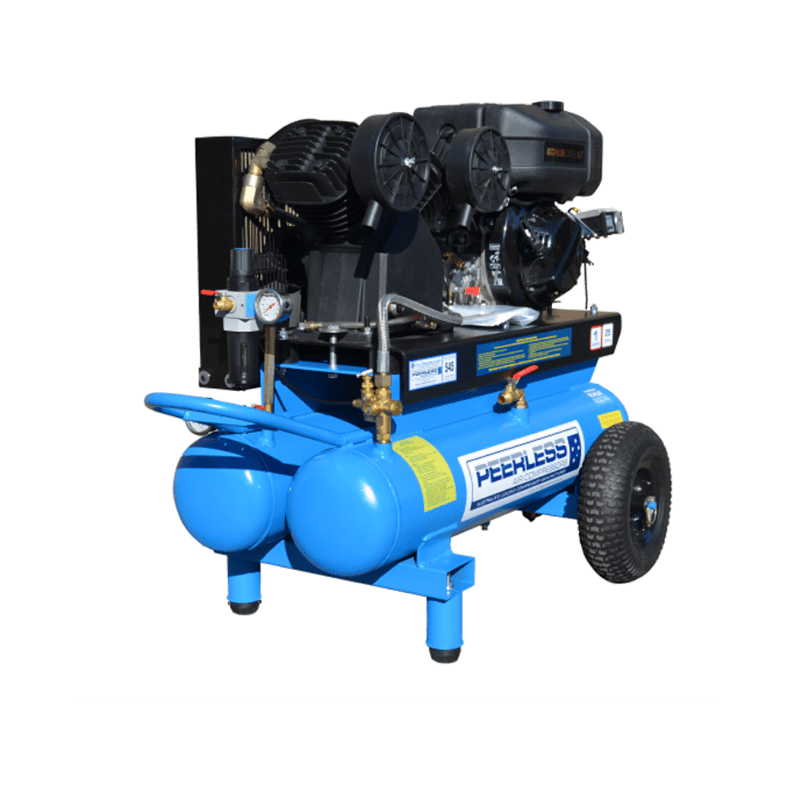

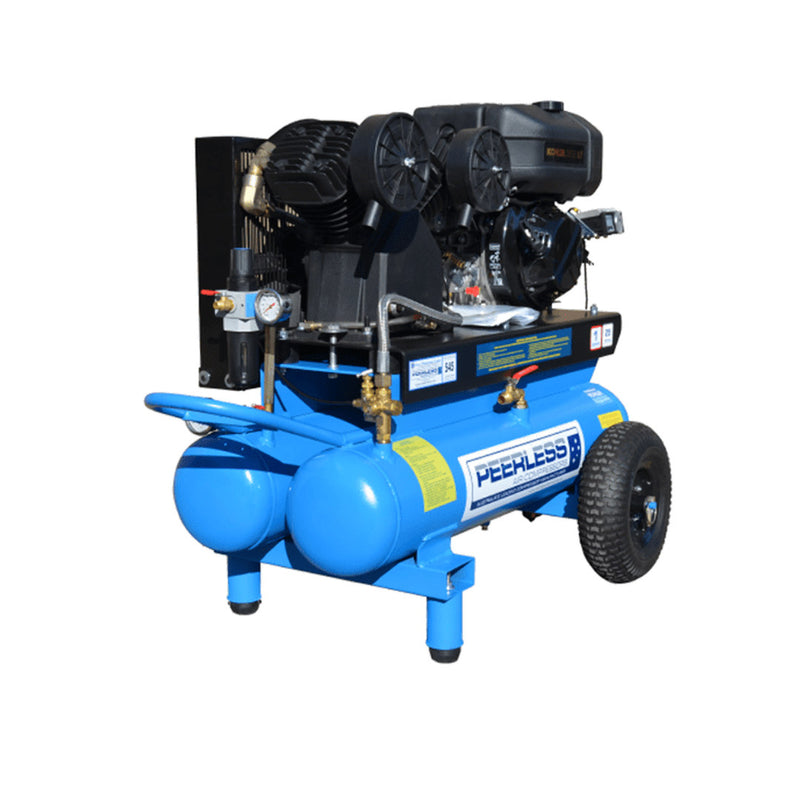

PEERLESS PV25 Belt Drive Diesel Air Compressor
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Peerless PV25 Diesel uses the Peerless floating top plate, which is not hard welded to the tank so it absorbs vibration from the engine and pump, reduces metal stress on the air receiver and lessens the load transferred to the mount. On a vehicle build the tank can be separated from the top plate at no additional cost, letting the pump sit lower for a better centre of gravity. It is powered by a Yanmar L70 key start diesel engine and delivers 545 litres per minute of free air delivery.
Key start is the only option in the diesel range, and the Conrader idle control valve throttles the engine up and down with air demand, venting excess air when it is not needed. Every Peerless diesel build comes with a suitable water trap filter regulator fitted for 0 to 145PSI or 0 to 175PSI operation, and each machine is run and tested before delivery. Custom builds are available, including a lift pump fuel feed, an MDG15 mine compliant retro box and wiring loom extensions. Electric start engines do not come with a battery, leads or battery provisions. Performance of the belt driven range is rated to AS4637.
Features
Yanmar Engine: Yanmar key start diesel engine.
Idle Control: Conrader idle control system, made in the USA.
Floating Top Plate: Floating top plate, a Peerless design that reduces vibration transfer to the tank.
Pressure Vessel: AS1210 approved pressure vessel, with an MDR report certificate available on request.
Safety Valve: Approved safety valve with safety certificate.
Tank Warranty: 10 year tank warranty.
Gauges: Stainless steel gauges, not plastic.
Belt Guard: Solid belt guard, not wire.
Outlet Hose: Flexible braided outlet hose from the pump.
Air Outlets: Two air outlets, one main tank outlet and one water trap regulator outlet.
Included accessories
Specifications
| Code | 00561 |
|---|---|
| Model | PV25P |
| Pump Displacement | 25 CFM |
| Free Air Delivery | 545 LPM |
| Max PSI | 145 |
| Engine | Yanmar L70 |
| Warranty Pump | 3 Year |
| Warranty Engine | 2 Year |
| Tank Capacity | 65L |
| Pump Up Time to 100PSI | 0.40 - 0.55 Min |
| Dimensions / Weight | 1370Lx740Wx940H / 130kg |
| Cooling Method | Air cooled |
| Pump Type | V90 |
| Cylinders | 2 |
| Pump Head Tension | 30 FT LB 40.67NM |
| Pump Oil Capacity | 105L |
| Pump RPM | 1050 |
| Outlet Thread | 1/4" BSP & 1/2" BSP |
| Engine Fuel Capacity | 2.7 |
| Engine Oil Capacity | 1.05L 10W/40 |
