Details

Banlaw receivers are manufactured from the highest quality materials, including stainless steel, to ensure they withstand harsh everyday treatment. This makes them less-prone to snapping-off or leaking than receivers made from softer materials.

Refuelling problems related to a specific machine should be overcome by changing the receiver, not the nozzle, in most cases.

A variety of accessories are available to allow the receiver to be adapted to fuel tanks or remote filling applications, including (replacement) dust caps to prevent the build-up of contamination on the receiver. Dry break receiver caps reduce the degree of contamination ingress into your fuel tank.

Receiver Spring Settings

Medium – The industry standard pressure setting. General receiver that is commonly fitted directly to the fuel tank.

Light – Used to help prevent premature nozzle shut off caused by long pipework, elbows, flow control valves, or significant elevation of tank above receiver location.

Heavy – Assists the nozzle to shut off earlier applying less pressure on the tank at shutoff. For tanks prone to overfill, or more sensitive to pressure. Common on sites where heavier nozzle spring settings are the standard.

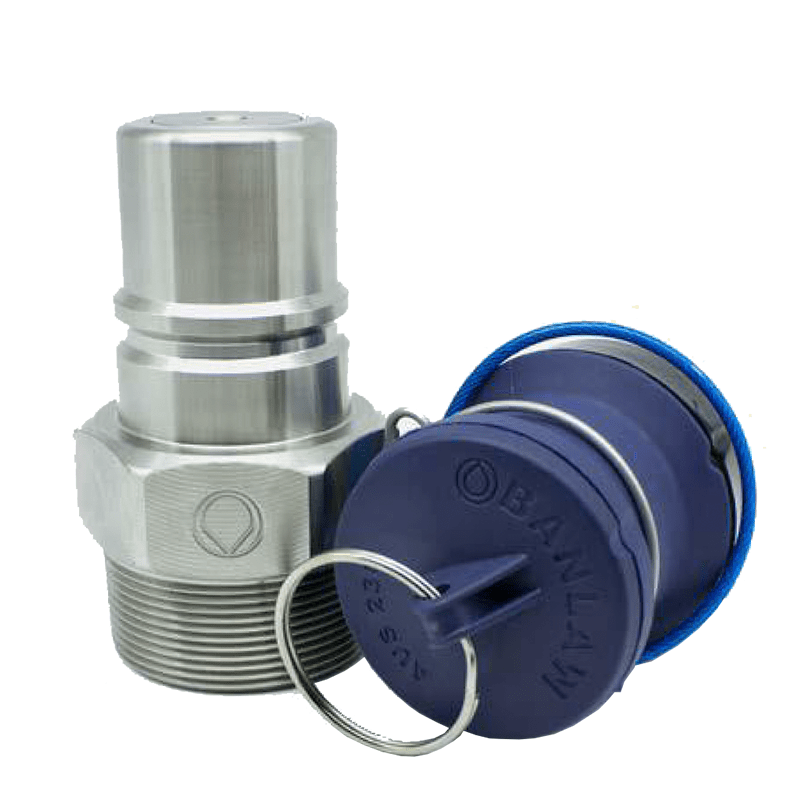

Banlaw Dry Break Diesel Receiver Range 800lpm

Name: BANLAW Dry Break Diesel Receiver Range 800lpm
Brand: Banlaw
SKU: AUS23KB
Price: 424.0 AUD
Availability: InStock

Overview

Banlaw's 23 Series 800lpm Dry Break Receivers are made of quality male refuelling couplings (couplers) and attached to the inlet of the vessel to be filled using a Banlaw 800 Series Dry Break Diesel Refuelling Nozzle

Banlaw 23 Series 800lpm Dry Break Receivers deliver industry leading performance, safety & durability. Banlaw manufactures a variety of Dry Break receiver configurations to suit various applications, including the Banlaw 23 Series 800lpm receivers which are compatible with refuelling nozzles supplied by other OEM’s.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

GO Data Sheet Banlaw 800 Series Dry Break Diesel Receiver Range

GO Data Sheet Banlaw Refuelling Systems

GO Manual Banlaw 800 Series Dry Break Diesel Receiver Range
