DONALDSON 10 Element Filter Head DN100 4" ANSI 150 2271LPM

SKU: P568933

DONALDSON 10 Element Filter Head DN100 4" ANSI 150 2271LPM

$8,916.40 AUD
$8,916.40 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
Donaldson Filter Head 10 Element DN100 (4

DONALDSON 10 Element Filter Head DN100 4" ANSI 150 2271LPM

$8,916.40 AUD
$8,916.40 AUD
Save $0
Sold out

Details

Applications

  • Bulk fuel and lubricant filtration and water removal
  • High flow transfer into or out of tanks and dispensing
  • Hard-to-filter high viscosity oils
  • Inline industrial filtration of gear oils and lubricants
  • Kidney loop applications

Installation

  • Install on pressure side of pump with arrows pointing in direction of flow
  • May be mounted horizontally or vertically
  • Allow 16.5" / 410 mm clearance to face for filters
  • Ensure proper containment for servicing filters (drip pan or other)
  • Install filter manifolds per local codes and regulations
  • Use with Donaldson Clean Solutions filter models DBB8664, DBB8665, DBB8666, DBB8777, DBB0248

Maintenance

  • Service filter when flow slows or predetermined differential pressure is reached
  • When servicing change all filters, all replacement filters must be identical
  • Isolate manifold, relieve pressure and drain prior to removing old filters
  • Install new filters on heads by spinning clockwise, tighten 1/2 turn after filter seats in gasket
  • Dispose of used filters appropriately

Features

  • Fast, easy and safe to service
  • Requires no electrical or air hook-ups
  • Large capacity in small foot print
  • Flexible mounting options (horizontal or vertical)
  • Cost effective high capacity system

    • Donaldson Filter Head 10 Element DN100 (4") ANSI 150 2271LPM

    Overview

    • Fluid Compatibility: All diesel fuels and lubricants
    • Filter Quantity: 10 (sold separately)

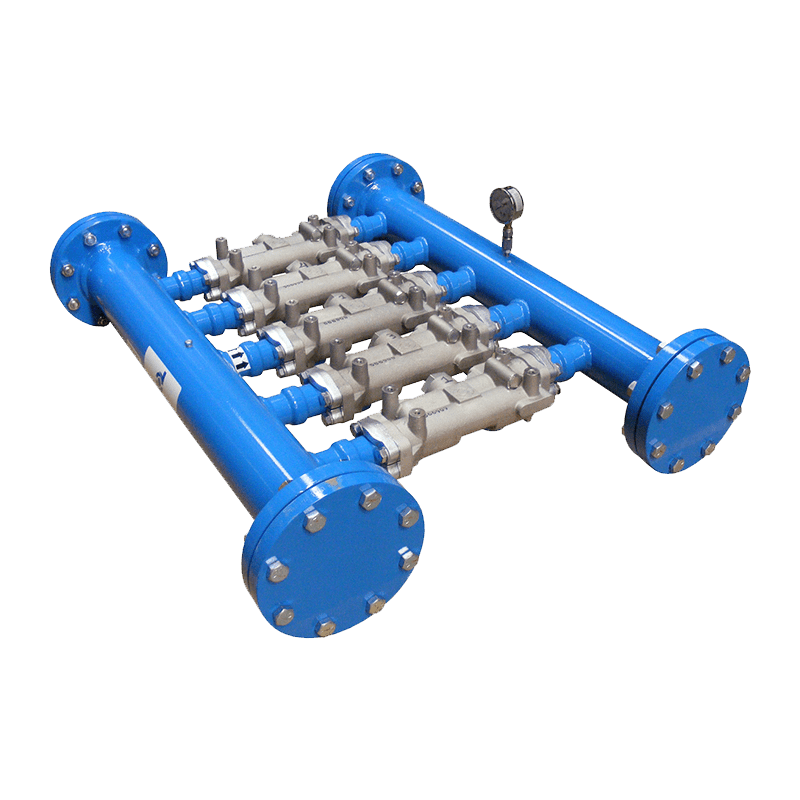

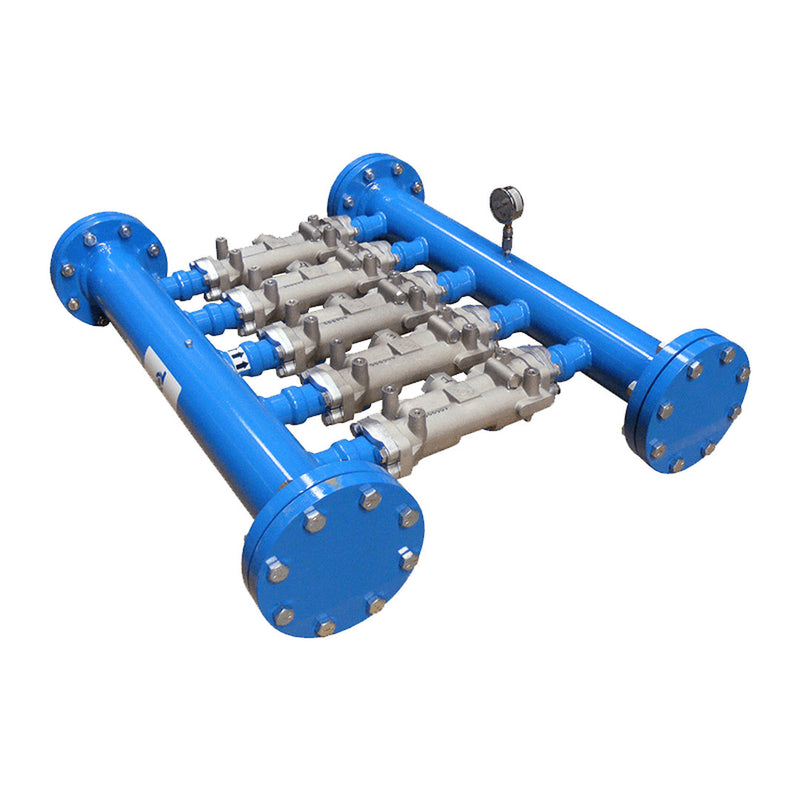

    Donaldson Clean Solutions Filter Manifolds expand capacity and increase flow rate beyond the capability of a single or dual filter head. The Donaldson P568933 10 Filter Manifold is constructed of heavy duty carbon steel and handles flow rates of up to 600 gpm / 2271 lpm.

    Dividing the flow between multiple filters plumbed in parallel slows the flow rate per filter, reducing pressure drop and extending filter life.

    A variety of filter medias are available to meet the specific application requirements.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • GO Data Sheet Donaldson P568933

      Specifications

      Filter Quantity

      10

      Mounting Connection

      4" ANSI 150 Flanges

      Max. Flow Range

      600 gpm / 2271 lpm

      Shipping Weight

      390 lbs / 177 kg

      Pressure Gauges

      2 pcs 0 -160 psi / 0 -11 bar gauges included

      Sampling

      Includes up-stream and down- stream mini-mess sampling ports with M16 x 2 thread

      Fluid Compatibility

      All diesel fuels and lubricants

      Working Pressure

      ANSI B16.5 flange rating 290 psi / 2413 kPa / 24.1 100 °F / 38 °C

      Construction

      Painted carbon steel pipe with aluminum heads

      Compatible Filters

      DBB8664, DBB8665, DBB8666, DBB8777, DBB0248

      Operating Temperature

      -40 to 245 °F / -40 to 120 °C

        Features

      • Fast, easy and safe to service
      • Requires no electrical or air hook-ups
      • Large capacity in small foot print
      • Flexible mounting options (horizontal or vertical)
      • Cost effective high capacity system
