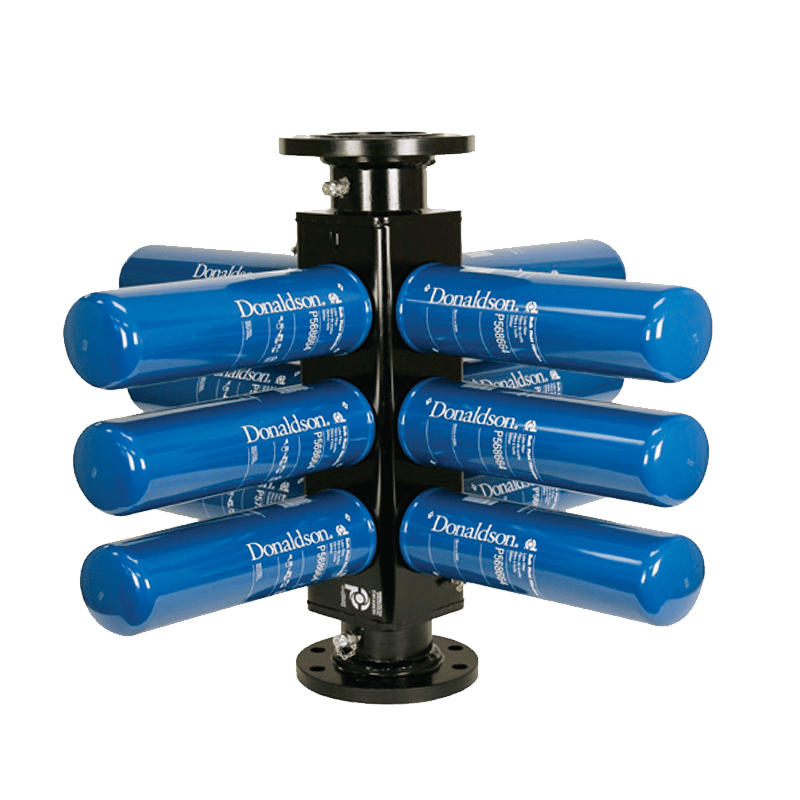

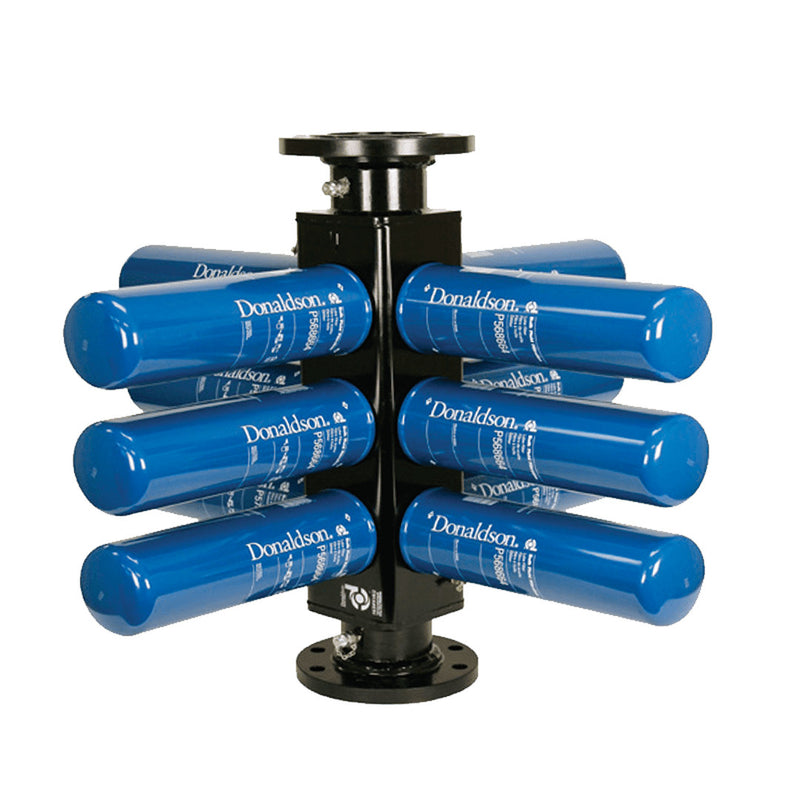

DONALDSON 12 Element Filter Head DN100 4" ANSI 150 2650LPM
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Donaldson Clean Solutions Filter Manifolds increase flow rates beyond the capability of a single or dual filter head. This twelve element head is compatible with all diesel fuels and lubricants and is configured to provide parallel flow through multiple filters. Multiple manifolds may be plumbed together in parallel flow to increase contaminant holding capacity or to clean fluids at high flow rates.
The manifold accepts Donaldson Clean Solutions spin-on elements including DBB8664, DBB8665, DBB8666, DBB8777 and DBB0248. Filter elements are sold separately and twelve are required, and pressure gauges are sold separately.
Features
- Twelve Element Bank: Twelve elements in parallel carry 2650 litres per minute, the top of the bulk filtration range.
- Filters Not Included: The manifold is supplied bare, so the filtration rating is set by the elements you fit.
- 4 Inch ANSI: 4 inch ANSI 150 flanges take the pressure and flow that threaded ports cannot.
- Sampling Ports: Mini-mess ports upstream and downstream, M16 x 2, so cleanliness can be sampled either side of the bank.
- Rated to 10.5 Bar: A 10.5 bar working pressure covers pumped bulk transfer, not just gravity feed.
Included accessories
Specifications
| PRODUCT FAMILY | Bulk Filtration |
|---|---|
| CONNECTION | 4 IN ANSI 150 flange |
| MAXIMUM FLOW RATE | 2650 L/MIN |
| MAXIMUM WORKING PRESSURE | 10.5 BAR | 152 PSI |
| MINIMUM OPERATING TEMPERATURE | -40 C | -40 F |
| MAXIMUM OPERATING TEMPERATURE | 118 C | 244 F |
| SAMPLING PORTS | Upstream and downstream mini-mess, M16 x 2 |
| DRY WEIGHT | 58 KG | 128 LB |
| PRESSURE GAUGES | Sold separately |
