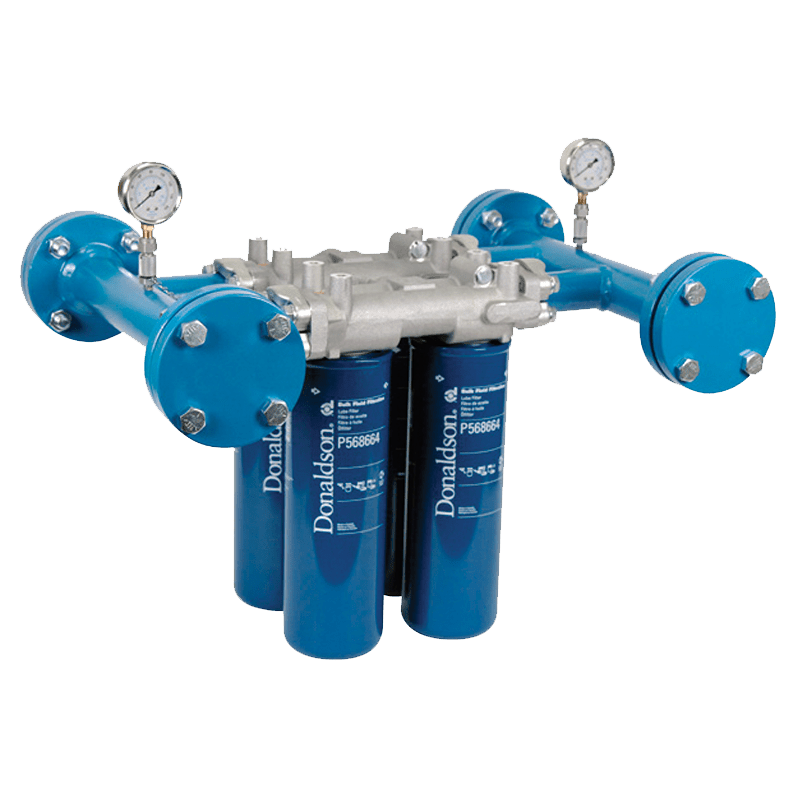

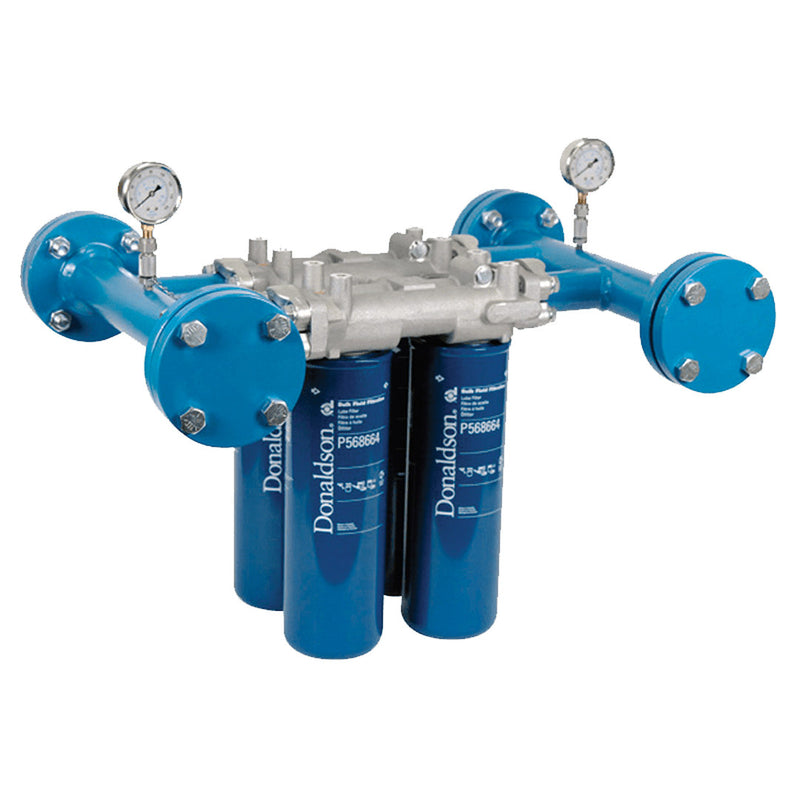

DONALDSON 4 Element Filter Head DN50 2" ANSI 150 946LPM
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Donaldson Clean Solutions Filter Manifolds increase flow rates beyond the capability of a single or dual filter head. This four element head is compatible with all diesel fuels and lubricants and is configured to provide parallel flow through multiple filters. Multiple manifolds may be plumbed together in parallel flow to increase contaminant holding capacity or to clean fluids at high flow rates.

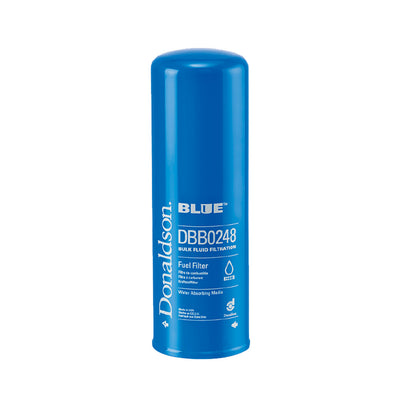

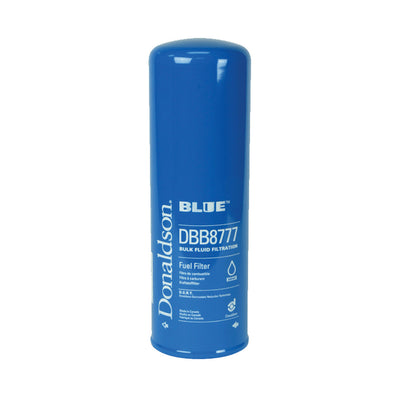

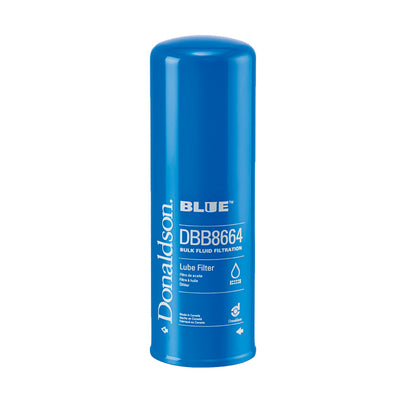

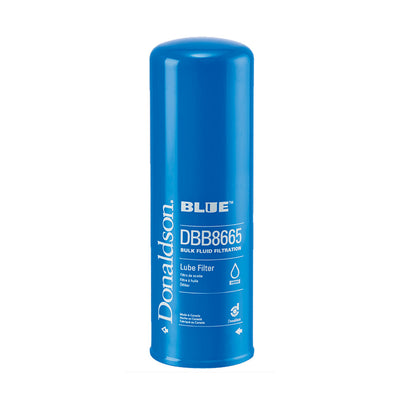

The manifold accepts Donaldson Clean Solutions spin-on elements including DBB8664, DBB8665, DBB8666, DBB8777 and DBB0248. Filter elements are sold separately and four are required.
Features
- Four Element Bank: Four elements in parallel carry bulk transfer flow without forcing a pressure drop.
- Filters Not Included: The manifold is supplied bare, so the filtration rating is set by the elements you fit.
- Flanged Connection: ANSI 150 flanges on inlet and outlet take the pressure and flow that threaded ports cannot.
- Parallel Banks: Elements run in parallel, so pressure drop stays low across the whole bank even at full flow.
- 2 Inch ANSI: 2 inch ANSI 150 flanges, 152 mm flange diameter, on a 487 by 616 mm frame.
Included accessories
Specifications
| PRODUCT FAMILY | Bulk Filtration |
|---|---|
| PRIMARY APPLICATION | Bulk fluids. Filters not included |
| MAXIMUM FLOW RATE | 946 L/MIN |
| INLET SIZE | 2 ANSI 150 Flange |
| OUTLET SIZE | 2 ANSI 150 Flange |
| FLANGE DIAMETER | 152 MM | 5.98 IN |
| LENGTH | 487 MM | 19.17 IN |
| WIDTH | 616 MM | 24.25 IN |
| COUNTRY OF ORIGIN | United States |
