GRACO Drain Valve Seat Seal

SKU 193710
Afterpay Zip PayPal LeaseGO
$7.40
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

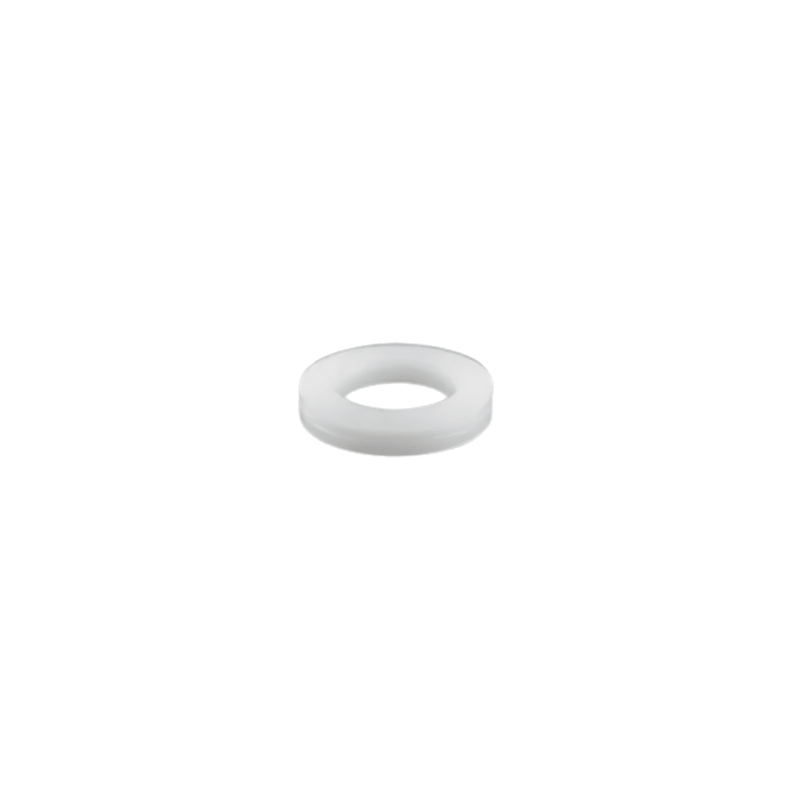

Seat seal 193710 sits directly behind the seat in the Graco drain valve and seals it into the valve body. It is the small part that stops material creeping around the outside of the seat rather than through it, and it is the one most often left in place when a seat gets changed.

Graco lists it immediately alongside seat 193709 in both the GH 833 and the RoadPak parts breakdowns, and the two are meant to be replaced together. Putting a new seat against an old seal usually means going back into the valve a second time, which is a poor trade on a part at this price.

Fitted to GH 833 sprayers (manual 311484, reference 158) and to the RPS 2900 filter assembly on RoadLazer RoadPak and RoadPak HD striping systems (manual 3A5386, reference 240M). Also supplied inside complete drain valve kit 245103.

Features
  • Genuine Graco Part: Supplied as Graco part 193710, so it seats into the valve body to the right depth instead of an approximate o-ring.

  • Fit With The Seat: Graco lists it directly alongside seat 193709 and the two are meant to be replaced as a pair, so one trip into the valve does the job.

  • Stops The Bypass: Seals the seat into the valve body so material cannot creep around the outside of the seat.

  • Cheap Insurance: The lowest-cost part in the drain valve, and the one that sends you back in a second time if it is skipped.

  • Multi-Range Fit: Common to GH 833 gas hydraulic sprayers and the RPS 2900 filter assembly on RoadPak and RoadPak HD striping systems.
Specifications
GRACO PART NUMBER 193710
GRACO DESCRIPTION Seal, Seat, Valve
FUNCTION Seals the Valve Seat into the Drain Valve Body
SUITS MACHINE GH 833, GH 833ES, RoadLazer RoadPak, RoadPak HD
POSITION, GH 833 Reference 158, Manual 311484
POSITION, ROADPAK Reference 240M, Filter Assembly 24G986, Manual 3A5386
SUPPLIED INSIDE Drain Valve Kit 245103
FIT WITH 193709 Valve Seat
RELATED PARTS 15G563 Handle, 116424 Cap Nut, 114708 Spring, 114797 Gasket
SERVICE MANUAL 311484 (GH 833), 3A5386 (RoadPak)
Warranty

Packings, o-rings and valve balls are wear parts. They are not covered by warranty in normal use and should be replaced as part of routine pump servicing. Manufacturing defects are covered by Graco's standard 12 month warranty from date of sale. GO Industrial is an Authorised Graco Warranty Repairer and Service Centre.

Read full warranty guide ›

Manuals
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

FAQs

Common questions.

Which machines does this seal fit?
It is used in the Graco drain valve on GH 833 and GH 833ES gas hydraulic sprayers (manual 311484, reference 158) and in the RPS 2900 filter assembly on RoadLazer RoadPak and RoadPak HD striping systems (manual 3A5386, reference 240M).
Do I need the seat as well?
Almost always. Graco lists seat 193709 and this seal as adjacent items and they wear together. Fitting a new seat against an old seal is the usual reason a drain valve still leaks after a repair.
What is the difference between the seat and the seal?
The seat is the hard face the ball closes against and controls the seal through the valve. This seal sits behind it and stops material creeping around the outside of the seat. Different jobs, and a valve needs both to hold.
Should I just buy the complete drain valve kit?
Kit 245103 is the whole valve and includes this seal, the seat, the handle, the cap nut, the spring and the gasket. If the handle or spring are also worn, take the kit. If it is only the sealing faces, the seat and seal together are the cheaper fix.
What makes them fail early?
Using the drain valve to relieve system pressure. Graco is explicit that pressure comes off through the guns, not the drain valve, because dumping pressure across the sealing faces damages them.
Can GO Industrial do the work for me?
Yes. Our Deception Bay workshop services Graco line striping systems and we are an Authorised Graco Warranty Repairer and Service Centre. Send the pump in on its own or book the whole rig through. Chat with us or email sales@goind.com.au to get it booked.
