GRACO Drain Valve Repair Kit - GO Industrial - 245103

GRACO Drain Valve Repair Kit

SKU 245103
Afterpay Zip PayPal LeaseGO
$473.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

Drain valve kit 245103 replaces the whole prime and drain valve rather than the individual sealing faces. It arrives as a complete valve with the seat (193709) and seal (193710) already installed, plus the handle, cap nut, spring, gasket and thread sealant, so the old valve comes out and this one goes straight in.

This is the kit to take when more than the sealing faces are gone. A handle that has worn round on the stem, a tired spring, or a valve body that will not hold at pressure are all past the point where a seat and seal will fix it. Where only the faces are grooved, the seat and seal on their own are the cheaper repair.

Rated to 4000 psi and fitted to Graco airless and gas hydraulic sprayers including the GH 833 and GH 833ES, where it is reference 162 in parts manual 311484. Installation steps are in manual 308961 below.

Features
  • Complete Valve: A whole drain valve rather than a set of loose parts, with the seat and seal already installed on the valve body.

  • Everything To Fit It: Includes the handle, cap nut, compression spring, gasket and the blue thread sealant the install calls for.

  • 4000 PSI Rated: Carries a 4000 PSI | 280 BAR maximum working pressure, matching the sprayers it is fitted to.

  • Genuine Graco Kit: Supplied as Graco part 245103, so the valve threads into the filter housing and seals the way the sprayer was built to.

  • Documented Install: Manual 308961 walks the nine-step fit, including the 20 in-lb cap nut torque that keeps the handle indexed.
Included accessories

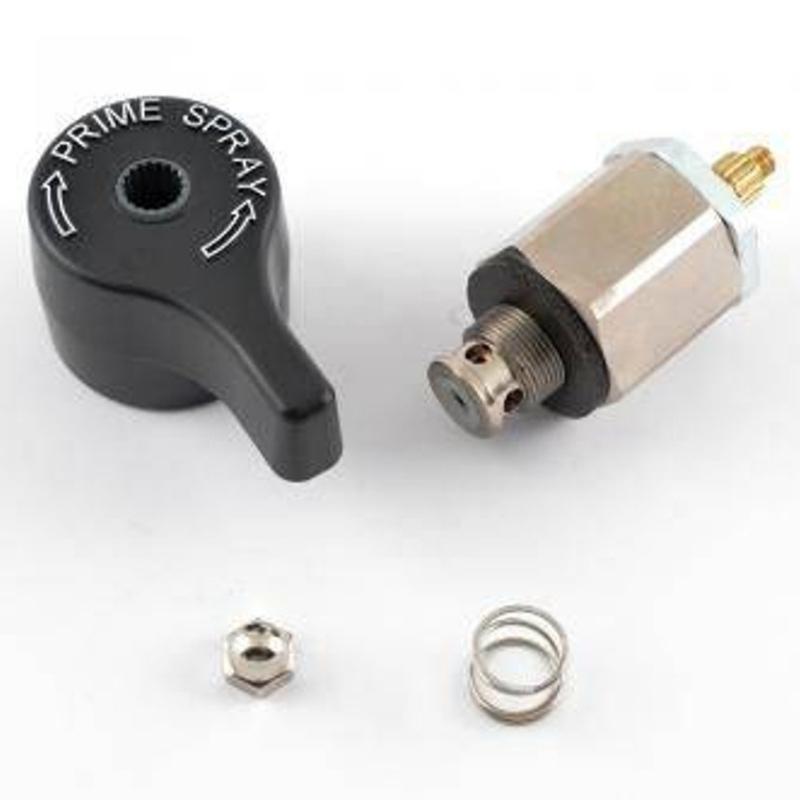

Graco drain valve kit 245103 is supplied with:

  • Valve - Drain valve body, with seat and seal already installed
  • 193709 - Seat, valve
  • 193710 - Seal, valve
  • 15G563 - Handle, valve
  • 116424 - Nut, cap, hex head
  • 114708 - Spring, compression
  • 114797 - Gasket
  • 113500 - Sealant, thread, blue
Specifications
GRACO PART NUMBER 245103
GRACO DESCRIPTION Kit, Valve, Drain
KIT TYPE Complete Drain Valve
MAXIMUM WORKING PRESSURE 4000 PSI | 280 BAR
SUITS MACHINE Graco Airless and Gas Hydraulic Sprayers, including GH 833 and GH 833ES
POSITION, GH 833 Reference 162, Manual 311484
SEAT AND SEAL 193709 and 193710, pre-installed on the valve
ALSO INCLUDES Handle 15G563, Cap Nut 116424, Spring 114708, Gasket 114797
CAP NUT TORQUE 20 IN-LB
SERVICE MANUAL 308961
Warranty

Packings, o-rings and valve balls are wear parts. They are not covered by warranty in normal use and should be replaced as part of routine pump servicing. Manufacturing defects are covered by Graco's standard 12 month warranty from date of sale. GO Industrial is an Authorised Graco Warranty Repairer and Service Centre.

Read full warranty guide ›

Manuals
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

FAQs

Common questions.

What is in drain valve kit 245103?
A complete drain valve with the seat (193709) and seal (193710) already installed, plus the handle (15G563), cap nut (116424), compression spring (114708), gasket (114797) and blue thread sealant. Everything the install needs.
Should I buy the kit or just the seat and seal?
If only the sealing faces are grooved, the seat and seal on their own are the cheaper fix. Take the kit when the handle has worn round on the stem, the spring is tired, or the valve body itself will not hold at pressure.
Which machines does it fit?
Graco airless and gas hydraulic sprayers running the 4000 psi drain valve, including the GH 833 and GH 833ES where it is reference 162 in parts manual 311484. Check your sprayer's parts manual if you are unsure which valve it carries.
How is it fitted?
Relieve pressure first, remove the old valve, grease the seal to hold it and the seat in place, apply the blue thread sealant, thread the valve into the filter housing, then fit the spring, handle and cap nut. Torque the cap nut to 20 in-lb. Full steps are in manual 308961 below.
Why do drain valves fail?
Most often from being used to relieve system pressure. Graco is explicit that pressure comes off through the guns, not the drain valve, because dumping pressure across the sealing faces wrecks them.
Can GO Industrial do the work for me?
Yes. Our Deception Bay workshop services Graco line striping systems and we are an Authorised Graco Warranty Repairer and Service Centre. Send the pump in on its own or book the whole rig through. Chat with us or email sales@goind.com.au to get it booked.
