GRACO RoadPak RPS 2900 Intake Valve Repair Kit - GO Industrial - 287838

GRACO RoadPak RPS 2900 Intake Valve Repair Kit

SKU 287838
Afterpay Zip PayPal LeaseGO
$540.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
In Stock

Pickup available at GO Industrial

Usually ready in 1 hour

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

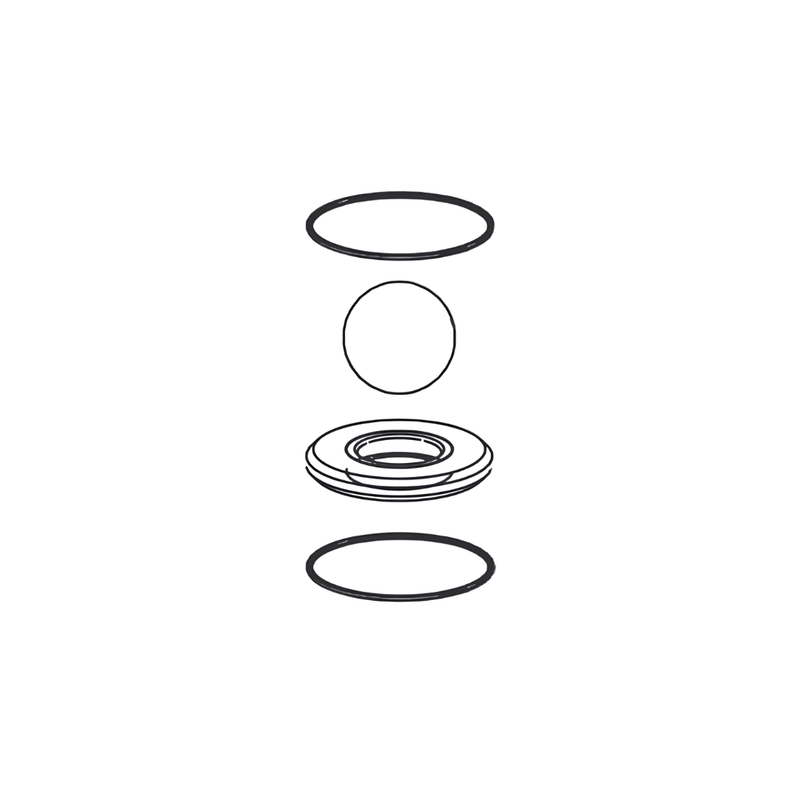

Intake valve repair kit 287838 replaces the carbide seat at the foot of displacement pump 287834, the lower inside the RPS 2900 pump fitted to RoadLazer RoadPak and RoadPak HD line striping systems. It is supplied as a complete kit with the carbide seat, the 38.1 mm stainless intake ball and the o-ring packing, so the whole intake end goes back together in one hit.

The intake valve is the first thing to suffer on a striping pump. It takes the full load of abrasive traffic paint on every up stroke, and once the seat is pitted the pump loses prime, struggles to pick up out of the drum, or drops pressure on the up stroke. Carbide is used here precisely because it outlasts steel in that duty.

Unlike the piston valve kit, this one includes its ball. Position and rebuild procedure are in manual 311485 below, reference 212.

Features
  • Carbide Seat: Carbide is used at the intake because it outlasts steel against the abrasive load of traffic paint on every up stroke.

  • Ball Included: Comes with the 38.1 mm | 1.5 in stainless intake ball, so the seat and the ball are replaced as a matched pair rather than bedding a new ball onto an old seat.

  • O-Ring Included: Carries the o-ring packing that seals the seat into the intake housing, so the intake end goes back together in one hit.

  • Restores Prime: Fixes the usual symptoms of a pitted seat, which are loss of prime, poor pickup out of the drum, and pressure dropping on the up stroke.

  • Fits Both Rigs: Suits the 287834 lower whether it is running in a RoadPak striping system or a GH 833 gas hydraulic sprayer.
Included accessories

Graco carbide seat kit 287838 is supplied with:

  • 287838 - Carbide intake seat
  • 108001 - Ball, stainless steel, 38.1 mm | 1.5 in.
  • 116377 - Packing, o-ring
Specifications
GRACO PART NUMBER 287838
GRACO DESCRIPTION Kit, Repair, Valve Intake
KIT TYPE Carbide Seat Kit
POSITION Reference 212, Displacement Pump 287834
SEAT MATERIAL Carbide
INTAKE BALL 38.1 MM | 1.5 IN Stainless Steel, included
SUITS PUMP 287834 Displacement Pump (inside RPS 2900 pump 24G767)
SUITS MACHINE RoadLazer RoadPak, RoadPak HD, GH 833, GH 833ES
ROADPAK MODELS 25M701, 25M702, 25M703, 25M704, 25M705
ROADPAK HD MODELS 25M706, 25M707
PUMPS PER MACHINE RoadPak 1 | RoadPak HD 2
SERVICE MANUAL 311485
RELATED KITS 287835 Packing, 287837 Piston Valve
Warranty

Covered by Graco's standard 12 month warranty against defects in materials and workmanship from date of sale. Packings, o-rings and valve balls are wear parts and are not covered in normal use. GO Industrial is an Authorised Graco Warranty Repairer and Service Centre.

Read full warranty guide ›

Manuals
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

FAQs

Common questions.

Which RoadPak units does this kit suit?
RoadLazer RoadPak (25M701, 25M702, 25M703, 25M704, 25M705) and RoadPak HD (25M706, 25M707). RoadPak runs one RPS 2900 pump, RoadPak HD runs two. It replaces the carbide intake seat in displacement pump 287834, the lower inside the RPS 2900 pump those systems run. The same lower is fitted to the GH 833 and GH 833ES gas hydraulic sprayers.
What is in the kit?
The carbide intake seat, the 38.1 mm stainless intake ball (108001) and the o-ring packing (116377). Unlike the piston valve kit, this one includes its ball, so the seat and ball are replaced as a matched pair.
How do I know the intake seat has gone?
Loss of prime, the pump struggling to pick up out of the drum, or pressure dropping on the up stroke. The intake takes the full abrasive load of traffic paint on every up stroke, so it is usually the first valve to wear on a striping pump.
Why carbide rather than steel?
Carbide holds its seating face far longer against abrasive, heavily pigmented traffic paints. A steel seat pits quickly in that duty and the ball then stops sealing, which is what costs you prime and pressure.
What else should I do while the pump is apart?
Repack it. Kit 287835 carries both packing stacks and Graco calls for packings to be replaced seasonally. Check the piston valve at the other end, kit 287837 covers that. If the cylinder bore or the piston rod is scored, the full lower (287834) is the fix.
Can GO Industrial do the work for me?
Yes. Our Deception Bay workshop services Graco line striping systems and we are an Authorised Graco Warranty Repairer and Service Centre. Send the pump in on its own or book the whole rig through. Chat with us or email sales@goind.com.au to get it booked.
