GRACO RoadPak RPS 2900 Pump Packing Repair Kit
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

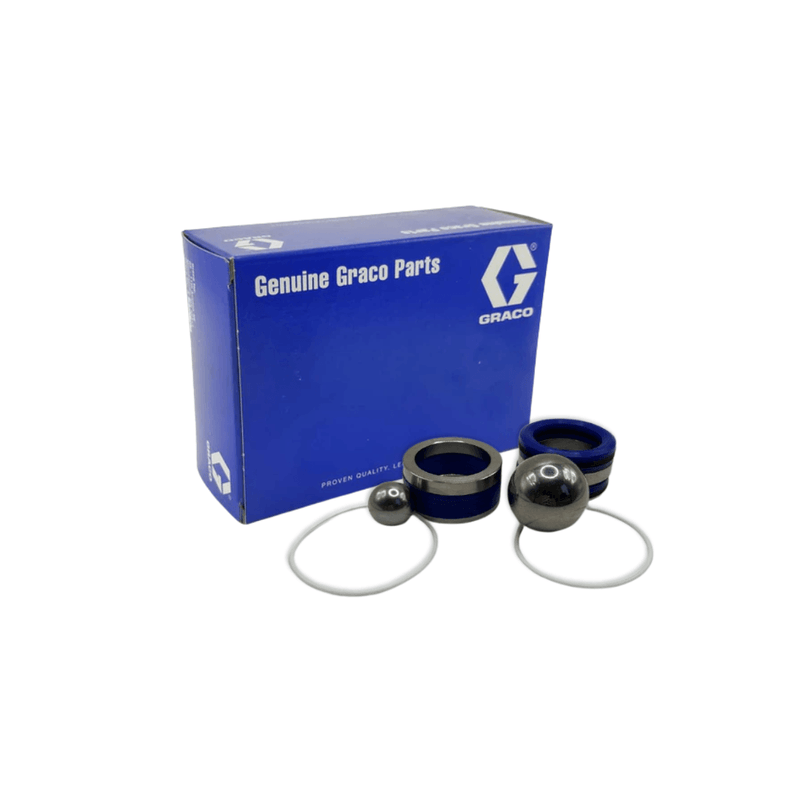

Packing repair kit 287835 rebuilds displacement pump 287834, the lower inside the RPS 2900 pump fitted to RoadLazer RoadPak and RoadPak HD line striping systems. It carries the full throat and piston packing stacks, both stainless valve balls, all four glands and the three o-ring packings, so a pump that has started weeping at the throat or dropping pressure mid-run comes back to its rated 4000 psi.
Repacking is the seasonal service on a striping lower. Graco calls for packings to be replaced each season to protect the piston and the sleeve, and to keep the throat topped up with TSL between services. Packings wear out long before the cylinder or the rod does, so a repack puts the pump back on the road for a fraction of the cost of a replacement lower.
One kit rebuilds one pump. RoadPak HD runs two RPS 2900 pumps, so order accordingly. The same lower is used on the GH 833 and GH 833ES gas hydraulic sprayers, and this kit suits those as well. Strip and rebuild instructions are in manual 311485 below, including packing orientation, which has to be right or the stack will not seal.
Features
- Complete Packing Stack: Rebuilds both the throat and the piston in one kit, ten packings in the materials and quantities the pump was built with.
- Genuine Graco Kit: Supplied as Graco part 287835, so packing heights, material grades and ball sizes match the original build instead of an approximation.
- Seasonal Service Item: Graco calls for pump packings to be replaced each season to protect the piston and sleeve, so this is planned maintenance rather than a breakdown part.
- Full Pressure Restored: Returns a worn lower to the RPS 2900 rated 4000 PSI | 275 BAR maximum fluid pressure.
- Both Valve Balls Included: Carries the 38.1 mm intake ball and the 22.2 mm piston ball in stainless steel, the two parts that most often pit and cost the pump its prime.
- Glands and O-Rings: Includes all four glands and the three o-ring packings, so nothing has to be chased up once the pump is on the bench.
Included accessories
Specifications
| GRACO PART NUMBER | 287835 |
|---|---|
| KIT TYPE | Packing Repair Kit |
| SUITS PUMP | 287834 Displacement Pump (inside RPS 2900 pump 24G767) |
| SUITS MACHINE | RoadLazer RoadPak, RoadPak HD, GH 833, GH 833ES |
| ROADPAK MODELS | 25M701, 25M702, 25M703, 25M704, 25M705 |
| ROADPAK HD MODELS | 25M706, 25M707 |
| MAXIMUM WORKING PRESSURE | 4000 PSI | 275 BAR |
| PACKINGS INCLUDED | 10 |
| PACKING MATERIALS | UHMWPE, Leather |
| GLANDS INCLUDED | 4 |
| VALVE BALLS INCLUDED | 2 (Stainless Steel) |
| O-RINGS INCLUDED | 3 |
| TOTAL PIECES | 20 |
| PUMPS PER MACHINE | RoadPak 1 | RoadPak HD 2 |
| SERVICE MANUAL | 311485 |
Warranty
Manuals
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Common questions.
Which RoadPak units does this kit suit?
Does it fit anything other than a RoadPak?
How often should the packings be replaced?
How do I know the pump needs repacking?
What else should I check while the pump is apart?
Can GO Industrial do the work for me?
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
